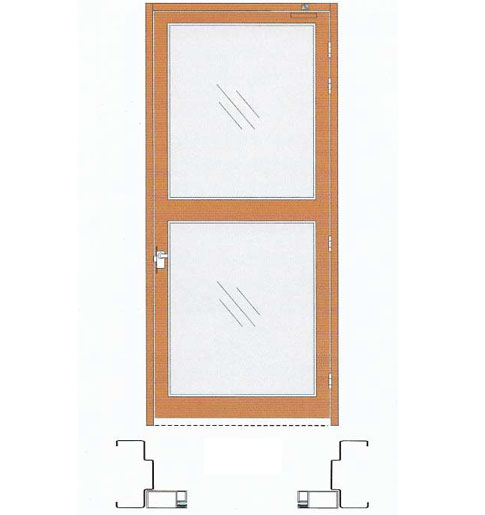

Glazed Metal Fire Rated Door
| Product Specification | |
|---|---|
| Door Type | Glazed Metal Fire Rated Door |
| Door Frame | 143 X 57 X 1.60 mm |
| Rating | 60 mins / 120 mins |
| Shutter Thickness | 50 X 1.60 mm |
| Shutter Stiles | Vertical & Top Members 50 X 100 X 1.60 mm, Bottom Members 50 X 200 X 1.60 mm |
| Criteria | Stability, Integrity & With Insulation Material |
| Testing Standards | BS 476 Part 20-22, IS 3614 Part 2 |
| Glazings | Glass – 2 hrs Fire Rated Clear Glass |
| Shutter Infill Insulation | Mineral Wool Insulation |
Construction Details
- Steel Frame Profile Design-BPFPL 100x50
- Frame Thickness – 1.6mm Galvanised Steel
- Shutter Sheet Thickness – 1.6mm Galvanised Steel
- Glass –2hrs. Fire rated clear Glass
- Shutter Infill Insulation – Mineral Wool Insulation
Optional Hardware
- Mortise Dead Lock Set with Cylinder- complete with D Shape Pull handle for Push / Pull Operations
- Mortise Sash Lock with Cylinder – Complete with Lever Handle for Push / Pull Operations
- Fire Rate Panic Bar – Push Side Operation Fire rated Panic Trim – Pull Side Operation
Recommended Hardware
- SS Ball Bearing Hinges – SUS 304 of Size 102mm x 89mm x 3mm
- Door Closer – Fire rated
- Tower Bolt / Flush Bolt
Recommended Finishes
- Power Coating in desired RAL Shade Code
- Polyurethane Coating in desired RAL Shade Code
- Selective Wood Grain Finishes available
