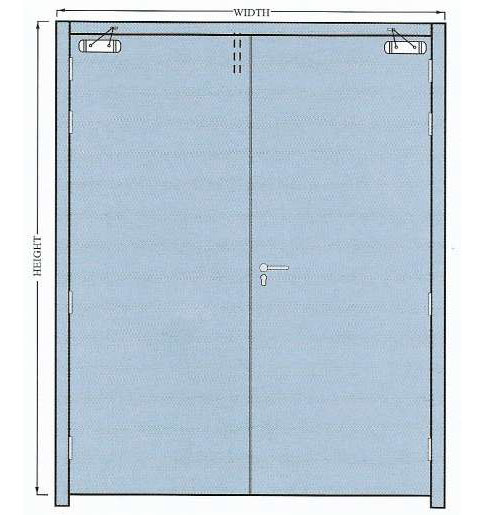

Steel Lead Lined Door
| Product Specification | |
|---|---|
| Door Type | Steel Lead Lined Door |
| Criteria | Nuclear/Radiation Protected |
| Rating | Not Applicable |
| Door Thickness | 44mm |
| Standards | AERB/DRS |
| Application | Radiology & Nuclear Medicine |

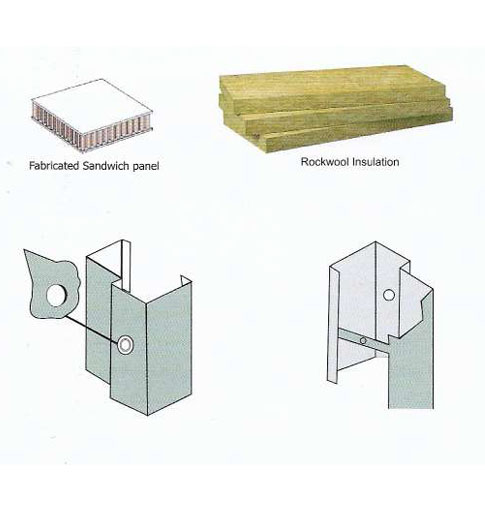

Construction Details
- Steel Frame Profile Design-BPFPL 100x50
- Frame Manufactured with 1.2mm Galvanized Steel
- Shutter Thickness – 44mm
- Shutter Infill – Honeycomb/Mineral wool including 2mm Lead Sheet
- Shutter Manufactured with 1mm Galvanised Steel
- Ingle Glazed Lead Glass as per requirement of size 200mmX300mm (5mm+ - 2mm)
Optional Hardware
- Mortise Dead Lock Set with Cylinder- complete with D Shape Pull handle for Push / Pull Operations
- Mortise Sash Lock with Cylinder – Complete with Lever Handle for Push / Pull Operations
Recommended Hardware
- SS Ball Bearing Hinges – SS 304 of Size 100mm x 75mm x 3mm
- Door Closer – Fire rated
- Tower Bolt / Flush Bolt
Recommended Finishes
- Power Coating in desired RAL Shade Code
- Polyurethane Coating in desired RAL Shade Code
- Selective Wood Grain Finishes available
